Description

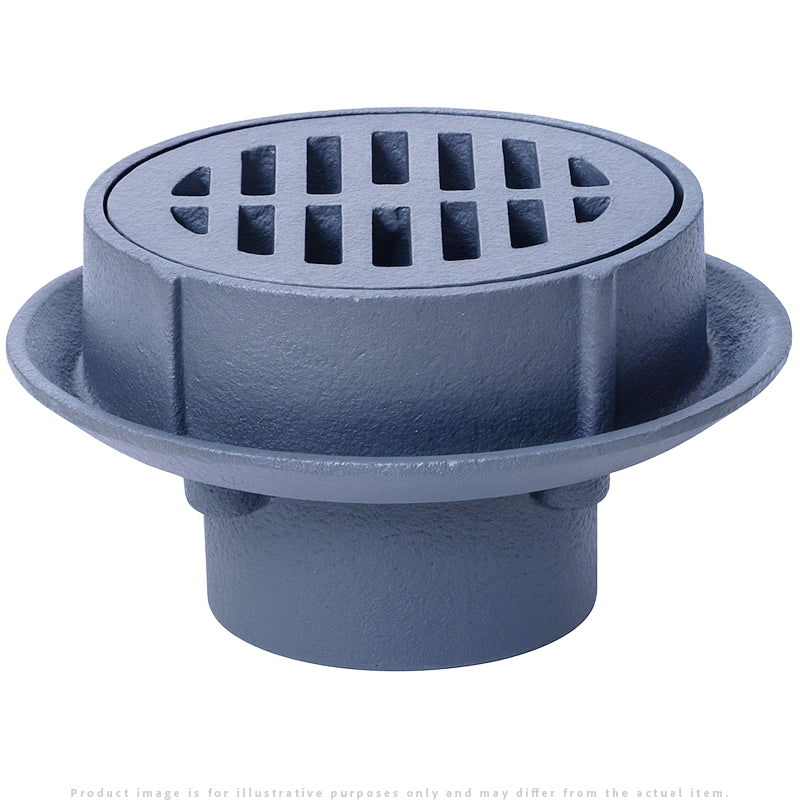

Zurn Z507 7" Medium-Duty Cast Iron Floor Drain
Product Overview
The Zurn Z507 Series is a durable 7-inch medium-duty floor drain built for commercial and industrial applications. Featuring a Dura-Coated cast iron body, bottom outlet, seepage pan, and combination membrane flashing clamp, this drain is designed for long-term reliability. Top options include cast iron, polished bronze, or polished nickel bronze.
Features & Benefits
- Available with cast iron, polished bronze, or polished nickel bronze top
- Dura-Coated cast iron body for corrosion resistance
- 7" medium-duty deep flange slotted grate
- Multiple outlet styles (IC, IG, IP, NH, NL)
- Includes membrane flashing clamp and seepage pan
- Ideal for commercial and industrial facilities
Specifications
- Model: Z507 / ZB507 / ZN507
- Top Diameter: 7" (178 mm)
- Body Material: Dura-Coated Cast Iron
- Finish Options: Cast Iron, Polished Bronze, Polished Nickel Bronze
- Grate Open Area: 9 sq. in.
- Approximate Weight: 27–29 lbs depending on outlet
- Outlet Types: IC, IG, IP, NH, NL
- Body Height: 2-3/4" to 5-1/4" depending on outlet
Installation Tips
- Select outlet type based on piping system requirements.
- Use membrane flashing clamp for waterproofing integration.
- Adjust grate height prior to finished floor installation.
- ZN507 requires additional height clearance (+3/16").
- Maintain grate regularly for optimal flow.
FAQs
- What are the finish options? Cast iron, polished bronze, or polished nickel bronze.
- Is it medium-duty? Yes, designed for medium-duty commercial use.
- Does it include a seepage pan? Yes.
- Are multiple outlet types available? Yes, five options are offered.
- Is it compatible with waterproof membranes? Yes, via the membrane clamp.
