Description

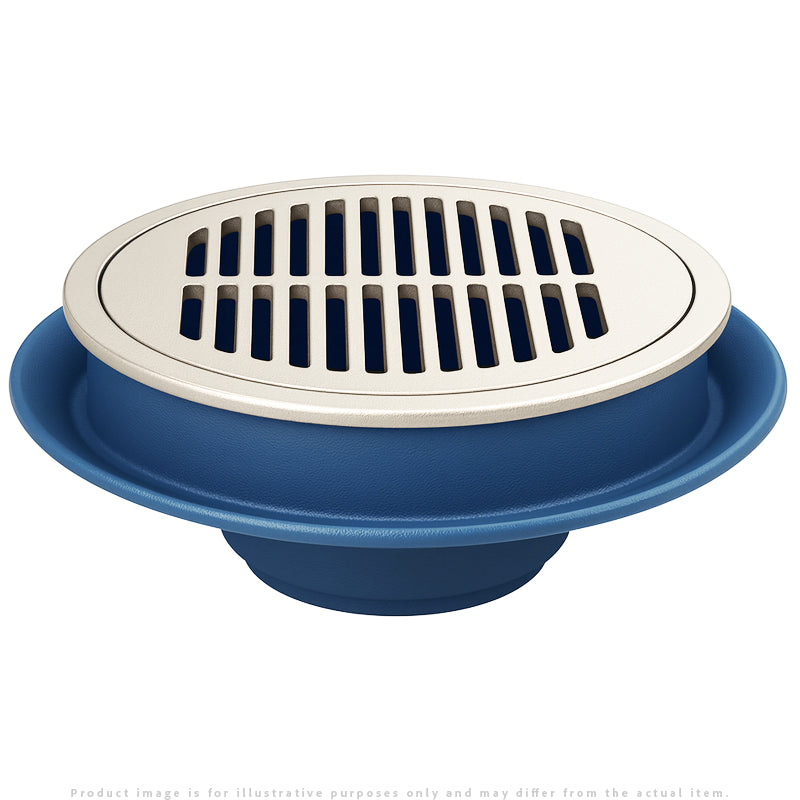

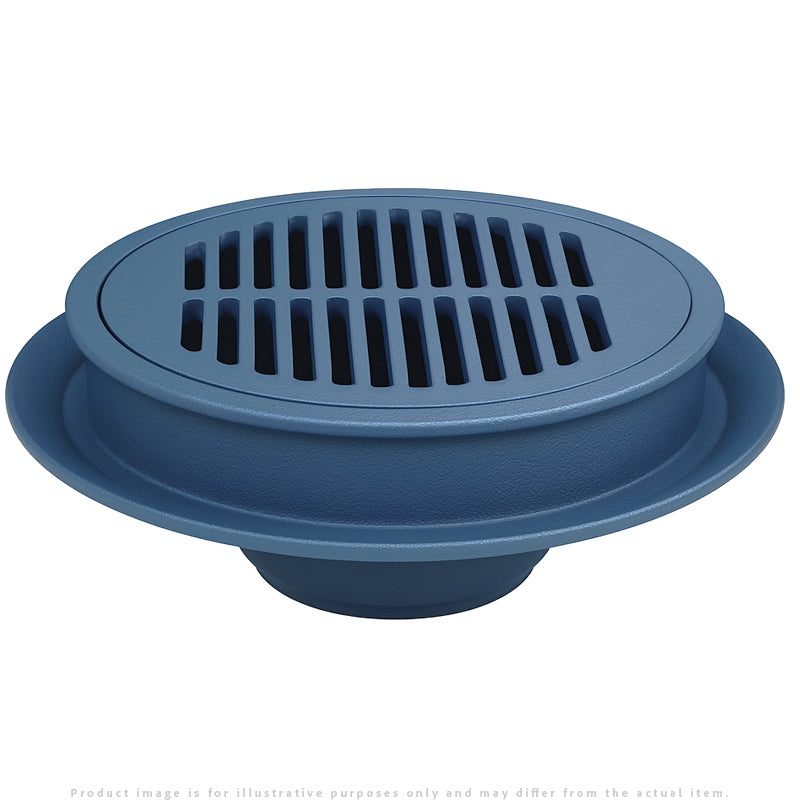

Zurn Z509 12" Heavy-Duty Cast Iron Area Drain
Product Overview
The Zurn Z509 Series is a 12-inch heavy-duty floor drain engineered for commercial, industrial, and institutional environments. Featuring a Dura-Coated cast iron body, bottom outlet, seepage pan, and a membrane flashing clamp, this drain supports a heavy-duty tractor grate. Top options include cast iron, or polished nickel bronze.
Features & Benefits
- Dura-Coated cast iron body with heavy-duty tractor grate
- Available with cast iron,or polished nickel bronze tops
- Bottom outlet with seepage pan and membrane flashing clamp
- Multiple outlet types: IP (threaded) or NH (no-hub)
- Ideal for industrial and high-load environments
Specifications
- Model: Z509 / ZN509
- Diameter: 12" top (15" overall)
- Material: Dura-Coated cast iron
- Grate Type: Heavy-duty tractor grate
- Outlet Options: IC, IG, IP, NH, NL
- Body Height: 2-5/8" to 6" depending on outlet
- Approx. Weight: 38 lbs
Installation Tips
- Confirm outlet style before ordering.
- Use membrane clamp for waterproof applications.
- Account for dimensional changes on bronze/nickel bronze models.
- Maintain grate and seepage pan for best performance.
FAQs
- What finishes are available? Cast iron, bronze, nickel bronze.
- Does it include a pan and clamp? Yes.
- What outlet types can I order? IC, IG, IP, NH, NL.
- Is it heavy-duty? Yes, designed for high-load traffic.
