Zurn Z513 / ZN513 9" Square Hinged Heavy-Duty Area Drain

Product Overview

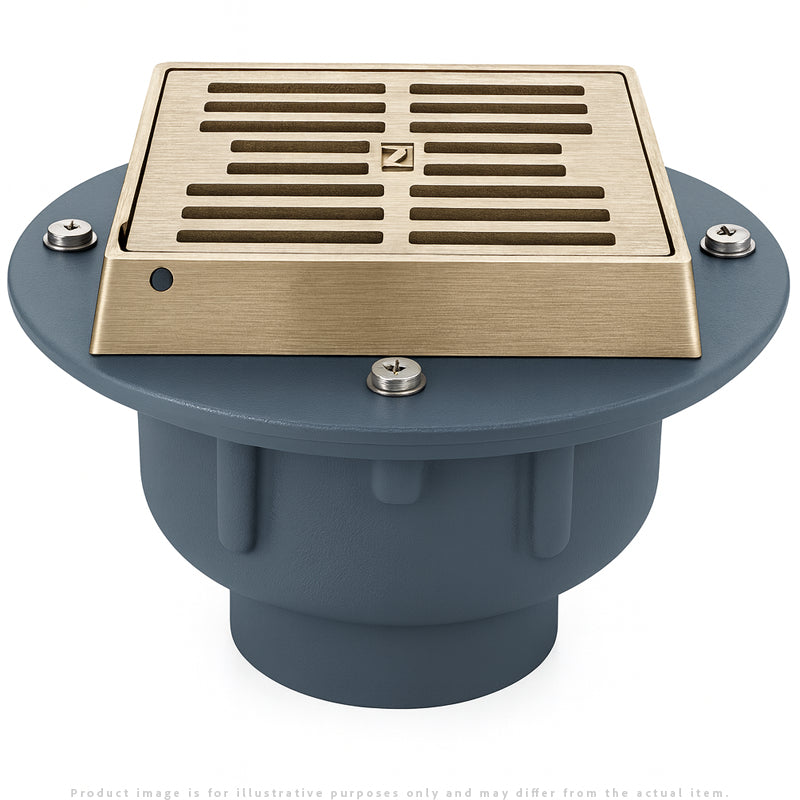

The Zurn Z513 and ZN513 9" Square Hinged Heavy-Duty Area Drain is engineered for rugged commercial and industrial use. Built with a deep-sump, Dura-Coated Cast Iron body, this drain features a heavy-duty hinged grate, integrated seepage pan, flashing clamp, and suspended sediment bucket for reliable long-term performance. The ZN513 version includes a polished nickel bronze top for enhanced corrosion protection and aesthetics.

Features & Benefits

• Heavy-duty D.C.C.I. body ideal for high-load environments
• Hinged slotted grate provides easy access and prevents loss
• Integrated sediment bucket captures debris to protect plumbing
• Available in cast iron or polished nickel bronze top assemblies
• Flashing clamp and frame deliver fast, secure installation

Specifications

• Top Size: 9" (229 mm) square
• Body: Deep-sump D.C.C.I. construction
• Outlet: 3" or 4" Neo-Loc bottom outlet
• Body Height: 6-5/8" (168 mm)
• Grate: Hinged heavy-duty slotted grate
• Sediment Bucket: Included
• Open Area: 20 sq in (129 cm²)
• Weight: 57 lbs (26 kg)
• Z513: Cast iron top | ZN513: Polished nickel bronze top

Installation Tips

• Embed the deep-sump body firmly in concrete for stable performance.
• Inspect and clean the sediment bucket regularly through the hinged grate.
• Ensure proper Neo-Loc gasket seating to maintain a watertight seal.
• Secure the flashing clamp around the floor membrane before pour.
• Use non-abrasive cleaners for nickel bronze finishes.

FAQ

Q: What is the difference between Z513 and ZN513?
A: Z513 uses a cast iron top; ZN513 uses a polished nickel bronze top.

Q: Does this model include a sediment bucket?
A: Yes, a suspended debris bucket is included.

Q: What outlet connections are available?
A: 3" or 4" Neo-Loc push-on outlets.

Q: Is the grate removable?
A: The grate is hinged for safe and easy access.

Q: Which finish is best for sanitary areas?
A: The polished nickel bronze ZN513 version offers improved corrosion resistance.
