Zurn Z535 Heavy-Duty Aluminum Parking Structure Drain

Product Overview

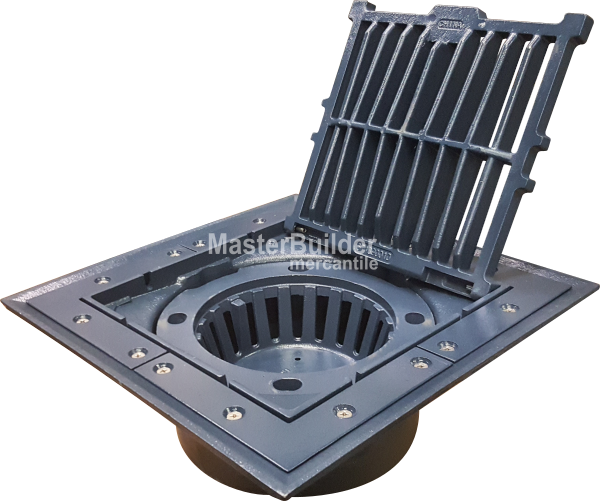

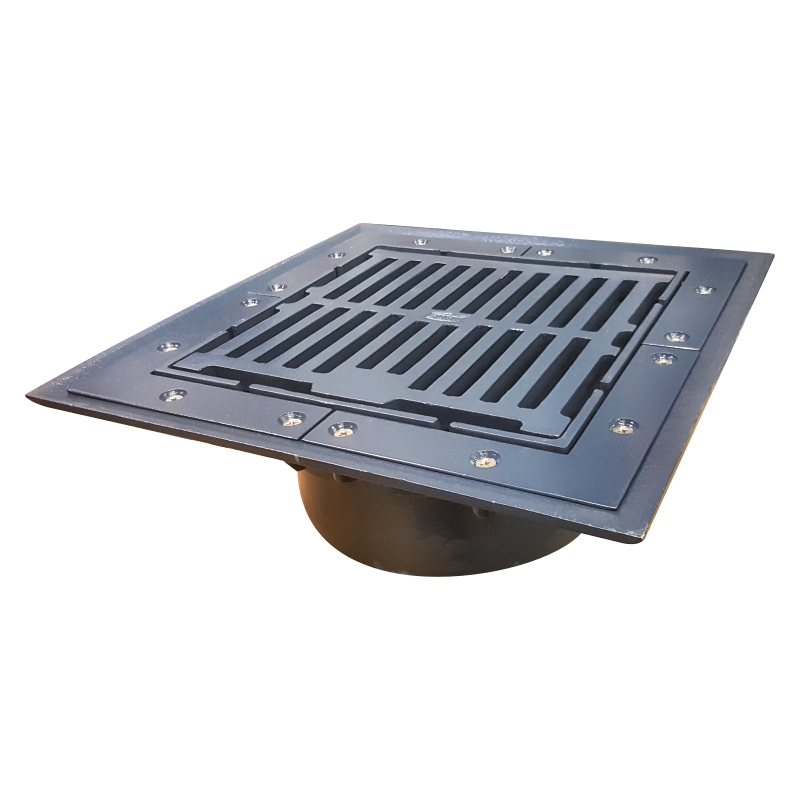

The Zurn Z535 is a 16 ¾" square heavy-duty parking deck drain engineered for durability and long-term performance in poured-in-place concrete structures. With its oven-cured, acid-resistant epoxy-coated aluminum body and a reinforced 12" square hinged grate, the Z535 delivers dependable drainage in demanding parking garage applications. A sediment bucket, stainless steel hinge pins, and an integrated membrane clamping collar ensure secure installation and maintenance reliability.

Features & Benefits

• Heavy-duty aluminum body with oven-cured epoxy coating
• Designed for parking garages and elevated concrete decks
• 12" hinged slotted grate with anti-tilt construction
• Stainless steel hinge pins for long-term durability
• Integrated membrane clamping collar for waterproofing
• Includes sediment bucket for debris capture
• Compatible with poured-in-place installation
• Available in 3", 4", 6", and 8" no-hub outlets
• Cast-iron version (ZC535) also available

Specifications

• Model: Zurn Z535
• Top Size: 12" square
• Body Size: 16 ¾" square
• Body Material: Aluminum with epoxy coating
• Grate Material: Heavy-duty aluminum
• Hinge Pins: Stainless steel
• Sediment Bucket: Included
• Outlet Sizes: 3", 4", 6", 8" no-hub
• Applications: Parking decks, garages, elevated slabs

Installation Tips

• Ensure the drain is level with the final slab height.
• Secure the membrane clamping collar around waterproofing layers.
• Match outlet size to the plumbing riser prior to concrete placement.
• Leave the sediment bucket in place during construction to capture debris.
• Inspect the hinged grate and bucket regularly for optimal flow.

FAQ

Is the Z535 suitable for commercial parking structures?
Yes, its heavy-duty grate and corrosion-resistant construction are ideal for high-traffic environments.

Does it resist corrosion?
Yes, the oven-cured epoxy coating provides strong resistance to chemicals and salts.

Is the sediment bucket included?
Yes, the product comes with a sediment bucket.

Is there a cast-iron option?
Yes, the ZC535 is the cast-iron version.

What outlet sizes are available?
3", 4", 6", and 8" no-hub outlets.
