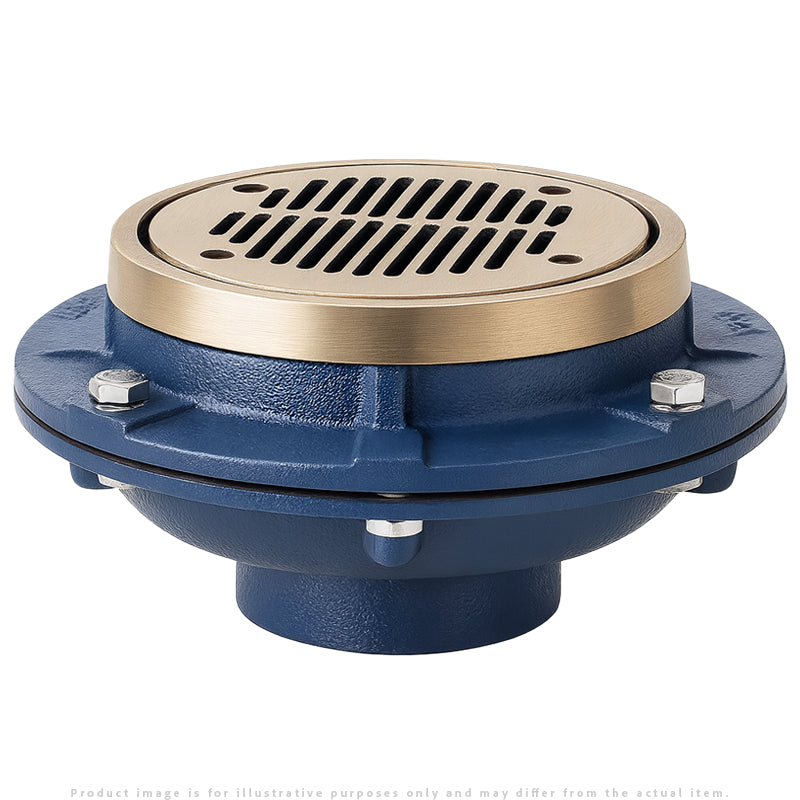

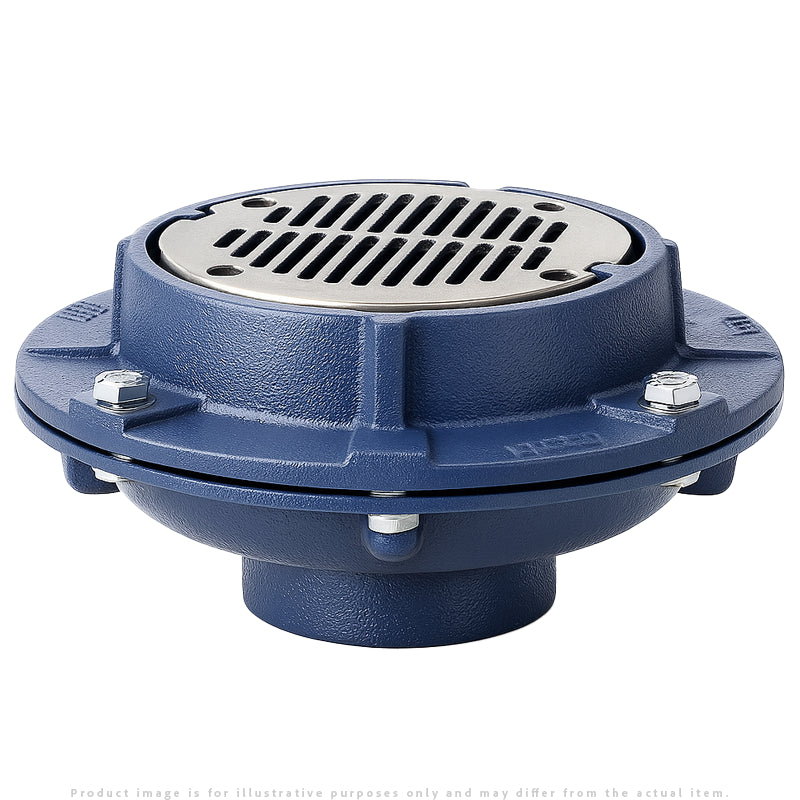

Zurn Z554 | ZN554 – 9" Medium-Duty Floor Drain with Sur-Set Bucket

Product Overview

The Zurn Z554 9" Medium-Duty Drain with Sur-Set Bucket is built for commercial and light-industrial applications requiring dependable drainage and simplified maintenance. Featuring a Dura-Coated cast iron body, heel-proof slotted grate, seepage pan, and integrated membrane flashing clamp, this drain ensures durable performance and secure waterproofing. The removable Sur-Set bucket helps prevent debris buildup and supports long-term system reliability.

Features & Benefits

• Dura-Coated cast iron body for long-lasting durability.
• Sur-Set sediment bucket for easy debris removal and maintenance.
• Heel-proof medium-duty slotted grate for safe pedestrian use.
• Available in cast iron or polished nickel bronze top options.
• Compatible with IP, NH, and NL outlet connection types.

Specifications

• Model: Z554
• Diameter: 9" (229 mm)
• Body Material: Dura-Coated Cast Iron
• Top Options: Cast Iron, Polished Nickel Bronze
• Outlet Sizes: 2", 3", 4"
• Outlet Types: IP, NH, NL
• Grate Open Area: 9 sq. in. (58 cm²)
• Approx. Weight: 21 lb (10 kg)

Installation Tips

• Align seepage pan and flashing clamp securely before tightening.
• Lubricate Neo-Loc gaskets for easier push-on installation.
• Verify clearance for Sur-Set bucket removal during layout.

Frequently Asked Questions (FAQ)

Q: What is the purpose of the Sur-Set bucket?
A: It collects sediment and prevents debris from entering the plumbing system.

Q: Does the Z554 come in a nickel bronze version?
A: Yes, select model ZN554 for a polished nickel bronze top.

Q: What outlet styles are supported?
A: Inside Caulk, Inside Gasket, Threaded, No-Hub, and Neo-Loc.

Q: Is the grate heel-proof?
A: Yes, the medium-duty slotted grate is designed to prevent heel penetration.

Q: Where is this drain typically used?
A: Commercial buildings, mechanical rooms, retail spaces, and other medium-duty drainage environments.
